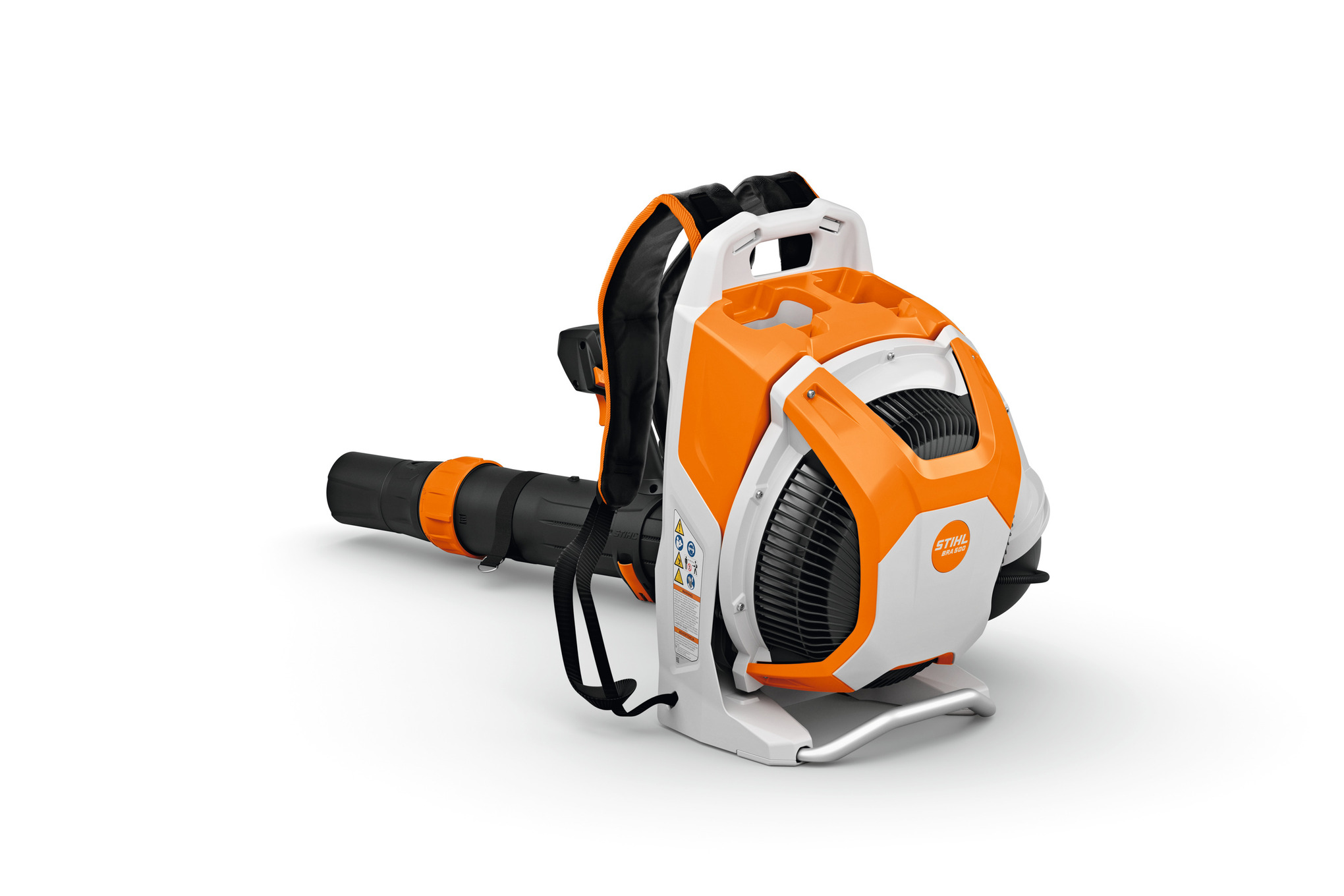

BRA 500 (Unit Only)

Battery discharge

sequentially

Max. battery working time AP 100.0 P

13 min

Min. battery working time AP 100.0 P

13 min

Max. battery working time AP 20.1

22 min

Min. battery working time AP 20.1

22 min

Max. battery working time AP 20

22 min

Min. battery working time AP 20

22 min

Max. battery working time AP 200

21 min

Min. battery working time AP 200

12 min

Max. battery working time AP 200.0 P

26 min

Min. battery working time AP 200.0 P

15 min

Max. battery working time AP 200 S

22 min

Min. battery working time AP 200 S

13 min

Max. battery working time AP 30.1

30 min

Min. battery working time AP 30.1

15 min

Max. battery working time AP 30

30 min

Min. battery working time AP 30

15 min

Max. battery working time AP 300

26 min

Min. battery working time AP 300

13 min

Max. battery working time AP 300.0 P

41 min

Min. battery working time AP 300.0 P

21 min

Max. battery working time AP 300 S

32 min

Min. battery working time AP 300 S

16 min

Max. battery working time AP 500 S

39 min

Min. battery working time AP 500 S

20 min

Blowing force with round nozzle

32.0 N

Device weight without battery

22.4 lb

Sound pressure level 15 m distance

64.0 dB(A)

Max. air velocity with round nozzle

244.0 mph

Max. air velocity with round nozzle

357.6 ft/s

Max. voltage

80 V

Rated voltage

72 V

Recommended battery

AP 300.0 P

Vibration level right

0.7 ft/s²

Air throughput with round nozzle

847.6 ft³/min

Air throughput with round nozzle

848 cf/min

Cordless power system

ALLPRO/AP
